Innovative Solutions for Wetcast Forms

BACK TO PRODUCT
Download Brochure

PRECAST CONCRETE & ITS BENEFITS


  • Precast concrete is a construction product produced by casting concrete in a reusable form (mould) which is then cured in a controlled environment at a factory and transported to the site for construction applications.
  • With precast concrete much reliable forms of construction are possible because studies reveal that...
  • Precast concrete gets stronger with passing time.
  • Capable of providing longer service life.
  • May require a little or no maintenance at all.
  • Gives consistency in quality & finish.
  • Saves lot of time in comparison to casting at site.
  • Dust, noise, wastage and disruption associated with the concrete production at site in traditional forms (cast-in-situ) of construction are reduced in precast concrete constructions.
  • Greater control over raw materials and workmanship together using best equipment at a precast plant ensures better quality, faster delivery and economical constructions.

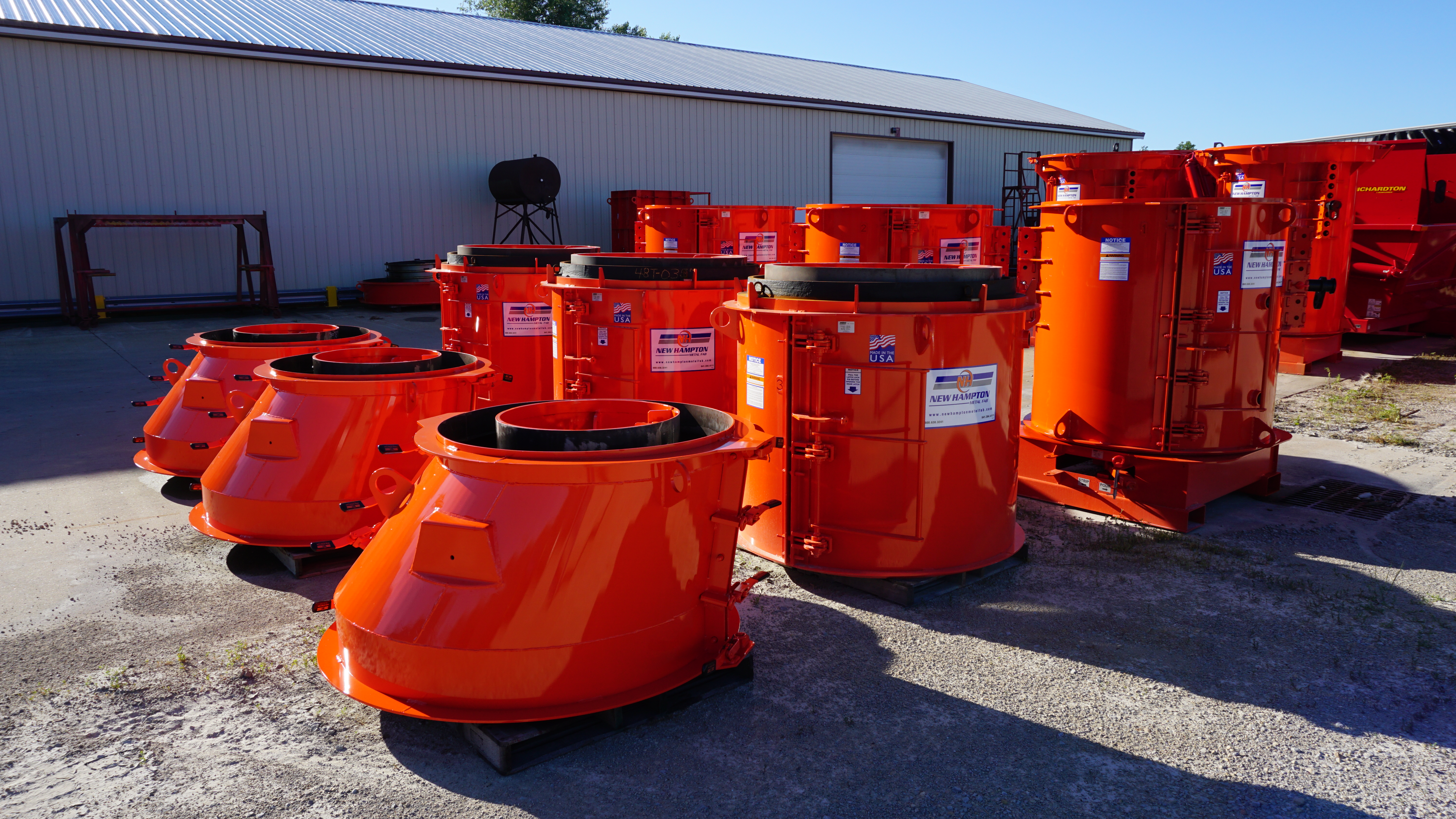

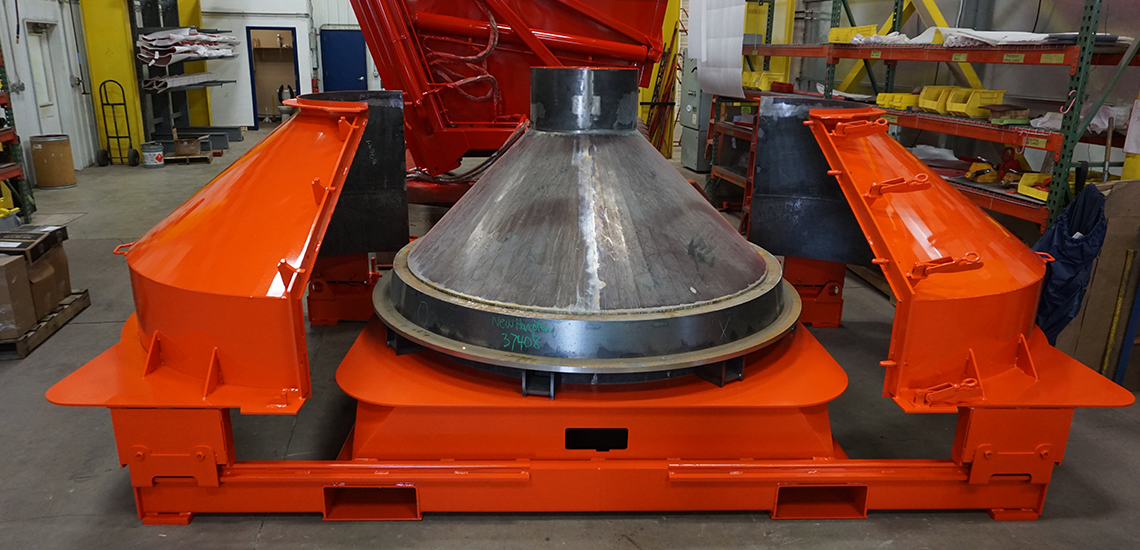

WETCAST FORMS FOR MANHOLE



In some part of our vast country the Manholes are still being constructed using Bricks & Mortar which is laborious and time taking processes. AHCT offers easy to use wetcast forms for making the manholes as per the Indian Standards (IS 17725 : 2022) which give the consistent quality together with saving of time and labour.

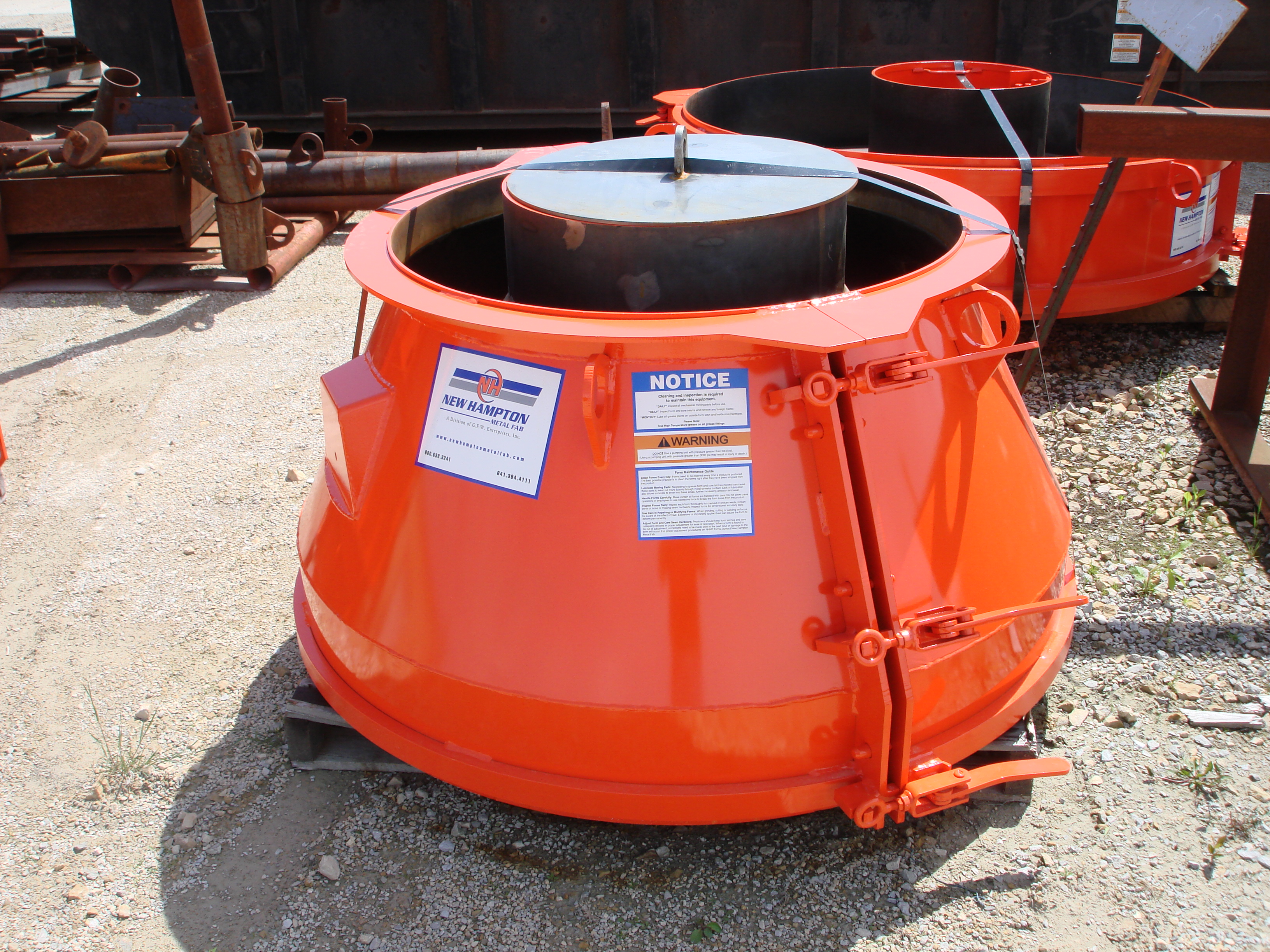

  • Cone Forms
  • Riser Forms
  • Base Forms
  • Slab Forms
  • Joint Rings

WETCAST FORMS FOR BOX CULVERTS


  • Precast box culverts are drainage systems that exist underneath roads, bridges and other forms of transportation infrastructure to allow for water to flow freely underneath and also used as utility ducts for power cable network.
  • A precise formwork system is necessary to craft quality box culverts & drains that fit unique project specifications.


ADJUSTABLE BOX FORM SYSTEM FEATURES


  • Interchangeable core filler panels and jacket filler panels.
  • Minimum box culvert size: 3‘ (900 mm) x 5‘ (1500 mm) inside dimension, filler panels to expand to max. of 20‘ (6000 mm) x 10‘ (3000 mm).
  • Jacket corners and filler panels are fabricated from 6mm skin pass HR steel plates, heavy steel tube screed rails.
  • Header fabrication is from 6mm skin pass HR steel plates, 12 mm HR top plate and reinforced with 6 mm HR steel gussets.
  • Pallet fabrication is from 6mm skin pass HR plates reinforced with 10 mm HR steel gussets.
